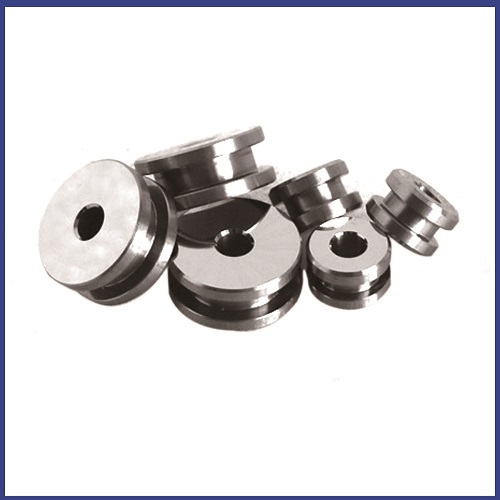

1.5 inch tungsten carbide gas lift Valve seat

Name: 1.5 inch tungsten carbide gas lift Valve seat
Brand: Better Carbide Co., Limited
Price: 800.0 INR
Availability: InStock

Price 800.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

1.5 inch tungsten carbide gas lift Valve seat Specification

Tungsten( in %)
85-92

Usage
Gas lift valve

Carbon %
4-6

Diameter
1.5 Inch (in)

Application
Oil & gas industries

Coating Type
uncoated

Color
shining

Width
1.5 Inch (in)

Warranty
3 years

1.5 inch tungsten carbide gas lift Valve seat Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
200 Pieces Per Day

Delivery Time
15-30 Days

Main Domestic Market
All India

About 1.5 inch tungsten carbide gas lift Valve seat

1.5 inch gas lift Valve seat Products Description

We manufacture tungsten carbide valve seat for standard 1.5" Valves in port sizes from 1/8" to 3/8", standard 1 1/2" in port sizes from 1/8" to 1/2"; We also manufacture customized valve seat as per your valve parts drawings and valve parts material specifications.
These tungsten carbide valve seat are used for Conventional Gas Lift Valves, Wireline Retrievable (WLR) Injection Pressure Operated (IPO) Gas Lift Valves, various Oil Field Equipment, Oilfield Valves, oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells and high pressure sulfur resistant oil wells, etc.

The 1.5 inch gas lift valve parts feature of our tungsten carbide valve seat:

High strength, high wear resistance, high precision, high temperature resistant and high corrosion resistant.

The 1.5 inch gas lift valve parts Size Port for our tungsten carbide Valve seat


Port Size	Ball Size
3.18 (1/8")	4.76 (3/16")
3.97 (5/32")	5.56 (7/32")
4.76 (3/16")	6.35 (1/4")
5.56 (7/32")	7.14 (9/32")
6.35 (1/4")	7.94(5/16")
7.14 (9/32")	8.73(11/32")
7.94(5/16")	9.53(3/8")
9.53(3/8")	11.11(7/16")
11.11(7/16")	12.7(1/2")
12.7(1/2")	14.29(9/16")

The 1.5 inch gas lift valve parts Physical Property for our Tungsten carbide valve seat

Density (g/cm3)	14.7
Hardness (HRA)	91.5
TRS (Ksi)	336

Advanced Material Composition

Manufactured from high-grade tungsten carbide, this carbide seat (a premium tungsten carbide seat) features a tungsten percentage of 85-92% and carbon content between 4-6%. The combination assures outstanding strength, durability, and resistance to harsh industrial environments, making it a favorable choice for the oil and gas sector.

Precision Design for Gas Lift Valves

With a precise 1.5 inch diameter and width, each valve seat ensures a snug, accurate fit for gas lift valves, reducing leakage and maximizing operational efficiency. The uncoated, shining surface facilitates easy inspection and maintenance during use.

FAQ's of 1.5 inch tungsten carbide gas lift Valve seat:

Q: How is the 1.5 inch tungsten carbide gas lift valve seat typically used in oil and gas industries?

A: This valve seat is used as a critical component in gas lift valves to regulate the flow of gas and improve oil extraction efficiency. Its robust design ensures reliable performance under the high-pressure conditions commonly found in oil and gas wells.

Q: What benefits does the high tungsten content provide for this gas lift valve seat?

A: The elevated tungsten content (85-92%) significantly enhances the seat's hardness, wear resistance, and longevity. This results in reduced downtime for maintenance and a longer operational life in demanding conditions.

Q: When should the gas lift valve seat be replaced?

A: Replacement is generally recommended when the seat shows signs of significant wear, leakage, or loss of performance. With its durable construction and 3-year warranty, frequent replacement is seldom necessary under normal operating conditions.

Q: Where can I source this tungsten carbide gas lift valve seat?

A: You can obtain this component directly from specialized exporters, manufacturers, and suppliers catering to the oil and gas industry, ensuring you receive high-quality, industry-standard products.

Q: What is the manufacturing process behind the tungsten carbide valve seat?

A: The valve seat is produced using powder metallurgy techniques, where tungsten and carbon powders are blended, pressed, and sintered to achieve the required hardness and structural integrity.

Q: How does the uncoated, shining finish impact its usage?

A: The uncoated, polished surface makes the valve seat easier to inspect for wear or damage, facilitating straightforward maintenance and ensuring the seat performs reliably throughout its service life.

Q: What are the advantages of using a 1.5 inch diameter valve seat in gas lift valves?

A: A 1.5 inch diameter provides compatibility with a wide range of gas lift valves, ensuring an optimal fit that enhances the system's sealing capability and efficiency during gas lift operations.
