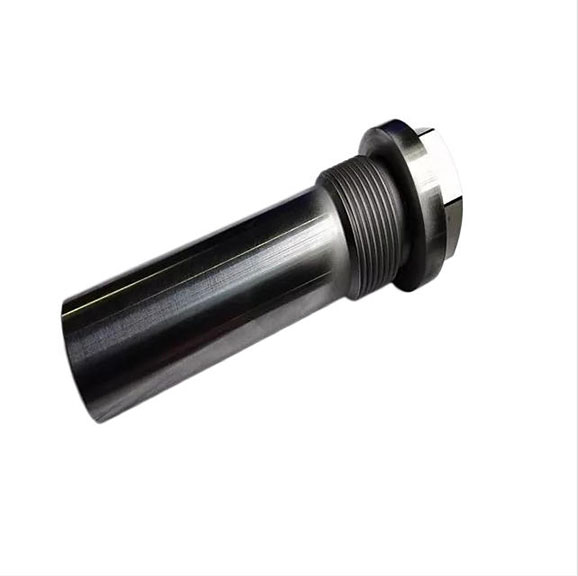

FC140 Choke Bean or OCT Type Positive Choke Bean with lined Tungsten Carbide

Send Inquiry

Request To Call Back

FC140 Choke Bean or OCT Type Positive Choke Bean with lined Tungsten Carbide

Price 50.0 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

FC140 Choke Bean or OCT Type Positive Choke Bean with lined Tungsten Carbide Specification

Tungsten( in %)
85-92

Usage
G-FT108 choke valve

Carbon %
4-6

Size
2"

Diameter
2 Inch (in)

Application
Oil & gas industry

Product Type
OCT FC140

Coating Type
available

Color
Shining

Accessories
None

Warranty
3 years

About FC140 Choke Bean or OCT Type Positive Choke Bean with lined Tungsten Carbide

Product Overview

The FC140 Choke Bean is a precision-engineered positive choke bean designed for accurate flow control in oil and gas wellhead equipment. Also known as the OCT FC140 choke bean, this component is widely used in positive choke valves to regulate the flow of fluids from wellheads, production trees, choke manifolds, and well testing equipment.

As a critical valve trim component, the choke bean is installed in the choke body to control flow rate, reduce pressure, and enable accurate calculation of oil and gas production volumes.- Each bean features a fixed-size precision orifice, allowing operators to calculate flow rates based on the specific orifice diameter selected.

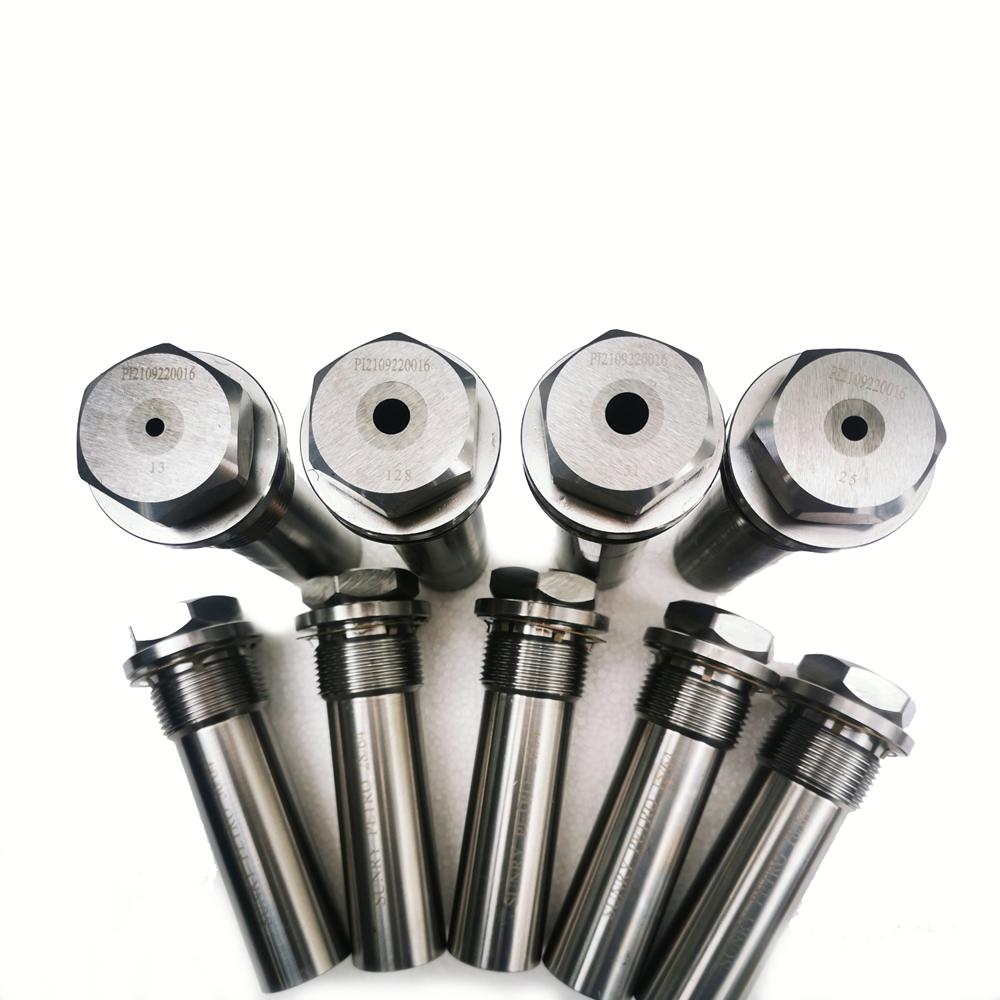

FC140 is the industry-standard trim for 2-inch positive chokes, while the H2 style is standard for 3-inch chokes.--11 Our FC140 choke beans are 100% interchangeable with major OEM designs including OCT, Cameron, Gray Tool, and other industry-standard equipment.

Key Features

1) Premium tungsten carbide lining - Exceptional resistance to abrasive wear from sand and solid particles in production fluids.

2) Superior corrosion resistance - Suitable for HS and CO environments (sour service).

3 Precision-ground orifice - Available in 1/64-inch increments for accurate, repeatable flow control.

4) High strength and rigidity - Withstands extreme pressure differentials.

5 Heat treated for durability - Hardness 207-235 BHN for extended service life.

6) Excellent erosion resistance - Resists erosion caused by high-velocity fluids-32.

7) 100% interchangeable Compatible with OCT - Cameron, Gray Tool, and industry-standard chokes.

Tungsten carbide grade chart:

Grade	ISO Gade	Density (g/cm3)	Hardness (HRA)	TRS (KSI)
YG6	K20	14.9-15.1	90-91	335
YG8	K30	14.7-14.9	89-90	350
YG9	K30	14.6-14.8	88.5-89.5	375
YG11	K40	14.3-14.5	87.5-88.5	410
YL10.2	K30	14.4-14.6	91.5-92.5	520

Technical Specifications:

Parameter	Specification
Type	OCT FC140 Positive Choke Bean
Compatibility	OCT, Cameron, Gray Tool, and industry-standard chokes
Orifice size range	4/64" to 64/64" (in 1/64" increments)
Common orifice sizes	8/64", 16/64", 24/64", 32/64", 40/64", 48/64"
Common sizes (inches)	1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1
Body material	AISI 410 Stainless Steel (Standard)
Liner material	Tungsten Carbide (C10/C25 or equivalent)
Alternative liner material	Ceramic (98.5% Alumina) available
Hardness (Body)	207-235 BHN after heat treatment
Surface treatment	QPQ treatment available to enhance surface hardness
Application	2" positive chokes using FC140 trim

Material Specifications

Body Material AISI 410 Stainless Steel

Provides excellent strength and corrosion resistance

Heat treated to achieve 207-235 BHN hardness

Suitable for sour service applications (with appropriate heat treatment)

Widely accepted in the oil and gas industry for choke bean bodies

Liner Material Tungsten Carbide (C10/C25 or equivalent)

Ultra-high hardness and wear resistance

Effectively protects the bean from abrasive wear caused by sand and other solid particles entrained in production fluids

Resists corrosive attack from HS, CO, and chlorides

Significantly extends service life compared to unlined steel beans

Alternative Liner Material Ceramic (98.5% Alumina)

High hardness and abrasion resistance

Excellent corrosion resistance

Available upon request for specific applications

Surface Treatment QPQ Treatment

Enhances surface hardness and wear resistance

Provides additional corrosion protection

Available upon request

Applications

The FC140 Choke Bean is designed for use in positive choke valves across a wide range of oil and gas operations:

Production Testing - Precise flow measurement during well testing operations

Flowback Operations - Controlling flow during well cleanup and flowback

Choke & Kill Manifolds - Flow control during drilling and well kill operations

Wellhead Flow Control - Regulating production flow rates from oil and gas wells

Production Manifolds - Managing production from multiple wells

Sour Service - Suitable for wells producing HS and CO

Abrasive Service - Ideal for wells with sand production

Why Choose Our FC140 Choke Bean?

Industry-Standard FC140 Trim

Our FC140 choke beans are the standard trim for 2-inch positive chokes, ensuring seamless compatibility with industry-standard choke bodies.

100% Interchangeable

Our FC140 choke beans are 100% interchangeable with major OEM designs including OCT, Cameron, Gray Tool, and other industry-standard equipment.

Superior Materials for Extended Life

The combination of AISI 410SS body and premium tungsten carbide liner (C10/C25) delivers exceptional resistance to both abrasive wear and corrosive attack the two primary failure mechanisms in choke bean service.

Precision Manufacturing

Each choke bean is precision-machined with orifice diameters graduated in 1/64-inch increments for accurate, repeatable flow control.

Customizable Options

Custom orifice sizes (4/64" to 64/64")

Ceramic liner options (98.5% Alumina)

QPQ surface treatment

Custom packaging

Proven Performance in Harsh Conditions

Engineered to withstand abrasive sand, HS, CO, and high-velocity fluids in the most demanding oil and gas applications.

Quality Assurance

1 ISO 9001:2015 Certified - Our factory operates under a certified quality management system

2 Material Certificate - 3.1/3.2 certificates available, full material traceability

3 Dimensional Inspection - Precision measurement of all critical dimensions

4 Hardness Testing - Verification of body hardness (207-235 BHN)

5 Surface Finish Inspection - Quality control of all finished surfaces

Ordering Information

To help us provide you with an accurate quotation, please specify the following when making an inquiry:

Orifice Size: (e.g., 8/64", 16/64", 24/64", 32/64", 40/64", 48/64", or in inches: 1/8", 1/4", 3/8", 1/2", 5/8", 3/4")

Liner Material: Tungsten Carbide (Standard) / Ceramic (Optional)

Surface Treatment: Standard / QPQ Treated (Optional)

Quantity: (Minimum order: 1 piece)

Destination Port: To calculate freight cost

Tip: Need help selecting the right orifice size for your well conditions? Contact our team we're happy to recommend based on your specific application.

Packaging & Shipping

Packaging: Standard export carton / wooden case (customized packaging available upon request)

Shipping: Worldwide delivery by express courier (DHL/FedEx/UPS), by air or by sea

Incoterms: EXW, FOB, CIF flexible terms available
